Lubing Floor-Watering System for Breeder
Floor-watering system guarantees optimum water supply
For combined rearing and layer use with TOP-Nipple Art. 4022; for layers from the 20th week with stainless steel Nipple Art. 4001
LUBING TOP-Nipple with sidewarts action for rearing.
Elements:
The LUBING Floor-watering System consists of the following elements:
1. Water Supply:With the main water supply we achieve an optimal waterquality for a long life of the drinking system. The water should have drinking water quality. It is absolutely necessary to filter the water. Water is supplied via the ball tank or over a pressure regulator with integrated flush facility. Both versions are available for the end connection or the middle connection.
2. Drinking Elements: The drinking lines are supplied in assembled elements of 3 m length. These elements are then coupled together through the length of the house.
3. Breather Unit:A breather revolving unit is installed at the end of the drinking line for the ventilation and the flush.
The TOP-Nipple with drip cup. The drip cup ensures dry manure.
4. Suspension:The suspension of the drinking lines is supplied via hangers which are stuck on the aluminium profiles approx. every 3 m. These hangers are connected with the plastic rope via ceiling pulleys with the central hoisting cable.
Then the drinking line can be adjusted to the required height by the hand or ceiling winches or it can be winched up easily to the ceiling for emptying and cleaning.
| Main facts at a glance | |
|---|---|
| breeder rearing | 10-15 Nipples |
| breeder | 10-12 Nipples |
| **The number of animals per nipple has to be reduced when the animals are heavy, in hot climate zones and in dependence of the light-/waterprogramme. Pay attention to national / regional regulations! | |
| rearing breeder (up to approx. week 20) | |
| article number 4055 | 08 nipple / 3 m-Element |
| article number 4056 | 10 nipple / 3 m-Element |
| article number 4057 | 12 nipple / 3 m-Element |
| article number 4058 | 15 nipple / 3 m-Element |
| breeder (from week 20) | |
| article number 4065 | 08 nipple / 3 m-Element |
| article number 4066 | 10 nipple / 3 m-Element |
| article number 4067 | 12 nipple / 3 m-Element |
| article number 4068 | 15 nipple / 3 m-Element |
| We recommend a drinking line every 2,5 to 3,5 m width of a house. Fundamentally, their should always be installed one more drinking line than food lines |
|
| front installation | max. length of lines (m) | middle installation | max. length of line (m) | |
|---|---|---|---|---|
| Pressure regulator | 3201-00 | 40 | 3206-00 | 120(80)** |
The LUBING slope regulator for the use in uneven houses.
The LUBING pressure regulator can also be installed in the middle of a water line according to the lenght house.
Lubing Floor-Watering System For Broilers

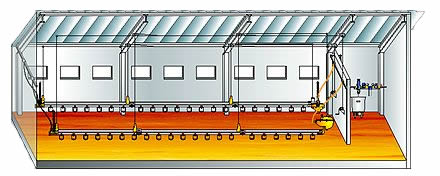

Floor-watering system for broilers with drip cup
Perfect water supply for all age groups
The central element of the floor-watering system is the TOP-Nipple.
The combination of TOP-Nipple and Drip Cup ensures a dry manure and a optimum flow for every age!
The height of the drinking lines have to be adjusted to the size of the birds!
They should have to stretch slightly to reach the nipples!
A table for the height of the drinker line for the floor-watering system, which is included in each delivery, makes it easy to find the right height option from the first day on.
Elements:
The LUBING Floor-Watering System consists of the following elements:
1. Water Supply
2. Drinking Elements
3. Breather Unit
4. Suspension
1. Water Supply: With the main water supply we achieve an optimal water quality for a long life of the drinking trough. The water should have drinking water quality. It is absolutely necessary to filter the water. Water is supplied via the ball tank or over a pressure regulator with integrated flush facility. Both versions are available for the end connection or the middle connection.
2. Drinking Elements: The drinking lines are supplied in assembled elements of 3 m length. These elements are then coupled together through the length of the house.
3. Breather Unit: A breather revolving unit is installed at the end of the drinking line for the ventilation and the flush.
4. Suspension: The suspension of the drinking lines is supplied via hangers which are stuck on the aluminium profiles approx. every 3 m. These hangers are connected with the suspension lines via ceiling pulleys with the central hoisting cable. Then the drinking line can be adjusted to the required height by the hand or middle winches or it can be winched up easily to the ceiling for emptying and cleaning.
| Main facts at a glance | |
|---|---|
| Recommended number of birds per nipple*: | |
| Normal mast / fattening up to 2 kg: | 18-20 animals / nipple |
| Heavy / fat mast up to 3 kg: | 15-18 animals / nipple |
| * The number of animals per nipple has to be reduced when the animals are heavy, in hot climate zones and in dependence of the light programme. Pay attention to national / regional regulations! Heavy broilers need Starter Cups in the last 2 weeks. Recommendation: 3 pcs. per element |
|
| (Several) versions of our delivery programme: | |
| Rearing (until 20th week) | |
| article number 4038 | 08 nipples / 3 m-Element |
| article number 4037 | 10 nipples / 3 m-Element |
| article number 4036 | 12 nipples / 3 m-Element |
| article number 4039 | 15 nipples / 3 m-Element |
| Layout: | |
| We recommend a drinking line every 2,5 to 3,5 m width of a house. Fundamentally, their should always be installed one more drinking line than feeding lines |
|
| front installation | max. length of lines (m) | middle installation | max. length of line (m) | |
|---|---|---|---|---|
| Pressure regulator | 3201-00 | 40 | 3206-00 | 120(80)** |
| Ball tank | 4221-00 | 60 (40)** | 4223-00 | 120(80)** |

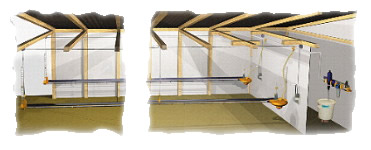

Floor-watering system for broilers without drip cup
LUBING TOP-Nipple reduced Art. 4077 LUBING TOP-Combinipple reduced Art. 4078 Perfect water supply for all age groups The central element of the floor-watering system is the TOP-Nipple reduced. The reduced flow of this nipple ensures a dry manure without drip cups. The height of the drinking lines have to be adjusted to the size of the birds! They should have to stretch slightly to reach the nipples! A table for the height of the drinker lines, which is included in each delivery, makes it easy to find the right height option from the first day on.
Please choose an element:
Elements:
The LUBING Floor-Watering System consists of the following elements:
1. Water Supply
2. Drinking Elements
3. Breather Unit
4. Suspension
Alternatively also a steel tube can be used above the nipple pipe
1. Water Supply:With the main water supply we achieve an optimal treatment of water for a long life of the drinking system. The water should have drinking water quality. It is absolutely necessary to filter the water. Water is supplied via the pressure regulator with integrated flush facility. This version is available for the end connection or the middle connection.
2. Drinking Elements:The drinking lines are supplied in assembled elements of 3 m length. These elements are then coupled together through the length of the house.
3. Breather Unit:A breather revolving unit is installed at the end of the drinking line for the ventilation and the flush.
4. Suspension:The suspension of the drinking lines is supplied via hangers which are stuck on the aluminium profiles approx. every 3 m. These hangers are connected with the plastic rope via ceiling pulleys with the central hoisting cable. Then the drinking line can be adjusted to the required height by the hand or ceiling winches or it can be winched up easily to the ceiling for emptying and cleaning.
| Main facts at a glance | |
|---|---|
| Recommended number of birds per nipple*: | |
| Broiler | 8-10 animals / nipple |
| Heavy / fat mast up to 3 kg: | 15-18 animals / nipple |
| * The number of animals per nipple has to be reduced in hot climate zones and in dependence of the light-/waterprogram. Pay attention to national / regional regulations! | |
| Versions of our delivery programme: | |
| Rearing (until 20th week) | |
| article number 4080-1 | 08 nipples / 3 m-element |
| article number 4081-1 | 10 nipples / 3 m-Element |
| article number 4082-1 | 12 nipples / 3 m-Element |
| article number 4083-1 | 15 nipples / 3 m-Element |
| Layout: | |
| We recommend a drinking line every 2,5 to 3,5 m width of a house. Fundamentally, their should always be installed one more drinking line than food lines |
|
| front installation | max. length of lines (m) | middle installation | max. length of line (m) | |
|---|---|---|---|---|
| Pressure regulator | 4281 | 60(40)** | 4282 | 120(80)** |
The LUBING slope regulator for the use in uneven houses.
The LUBING pressure regulator can also be installed in the middle of a water line according to the lenght house.
